QRC06003

2.4/5 GHz Dual-Band Antenna With directional radiation pattern
The QuantalRF QRC06003 is a high efficiency dual-band (2.4/5 GHz) PCB antenna for Wi-Fi 4, Wi-Fi 5, Wi-Fi 6 and Wi-Fi 7. The QRRC06003 features an exceptionally small footprint and fits within extremely compact form factors. Nevertheless, it provides high efficiency and omnidirectional radiation pattern across the 2.4/5 GHz bands. The base design which is specified in this data sheet can be customized to specific use cases and applications to ensure that all customer demands are met.

Access the Ansys HFSS™ 3D antenna model.

DOWNLOAD DOCUMENTATION

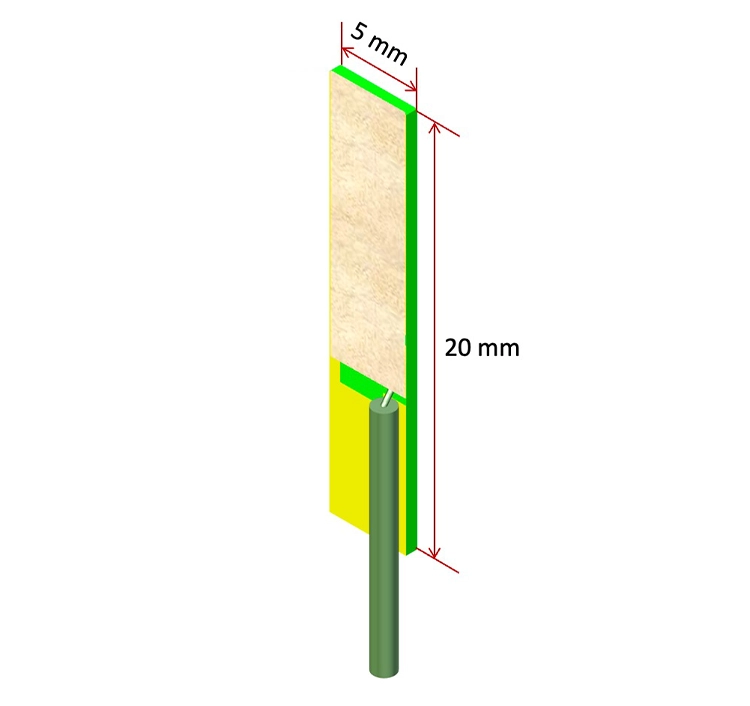

Diagram of QuantalRF DockOn CPL antenna QRC06003 with labeled dimensions and compact vertical antenna design.

Applications

  • IoT modules
  • AI Glasses

Features

  • Exceptionally small footprint
  • Omnidirectional radiation pattern
  • Standard low-cost FR4 material
  • High efficiency

Key Specifications

  • Total efficiency
    • 60+% (2.4 GHz)
    • 70+% (5 GHz)
  • Peak gain
    • 3 dBi (2.4/5 GHz)
Please fill out this form to receive the Ansys HFSS™ 3D antenna model via email.
